CI_EC11

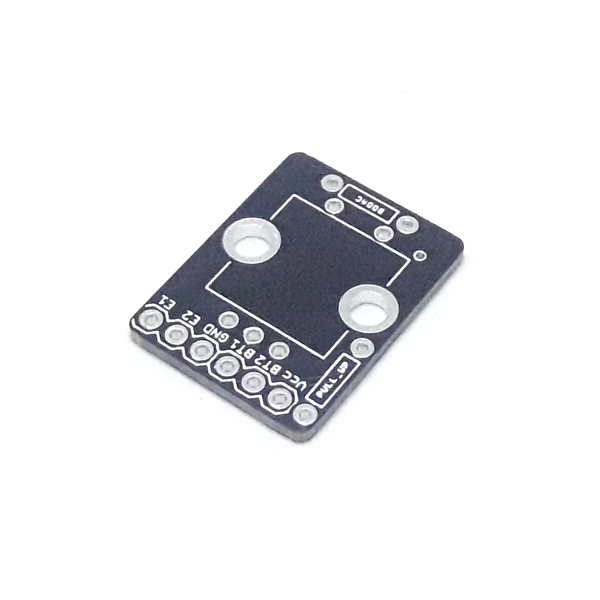

Board for EC11 rotary encoders, with or without knob.

The 2.54 mm pitch connector makes it easy to connect dupont cables.

The button’s pins are exposed separately, enabling it to be integrated into a button matrix, for example.

The SJ1 soldering bridge connects one of the button terminals to GND, enabling the board to be connected with just 4 wires (GND, button, EncA, EncB).

Resistors can also be soldered to integrate the button into a Bodac or other resistor-based system.
