CI_EC11 Mini
CI_EC11 Mini - Image 2

CI_EC11 Mini

Board for EC11 rotary encoders, with or without knob.

The 2.54 mm pitch connector makes it easy to connect dupont cables (4 pins: E1,E2,GND,Push).

0,00 € TTC

Board for EC11 rotary encoders, with or without knob.

The 2.54 mm pitch connector makes it easy to connect dupont cables (4 pins: E1,E2,GND,Push).

Schematics

Pinout

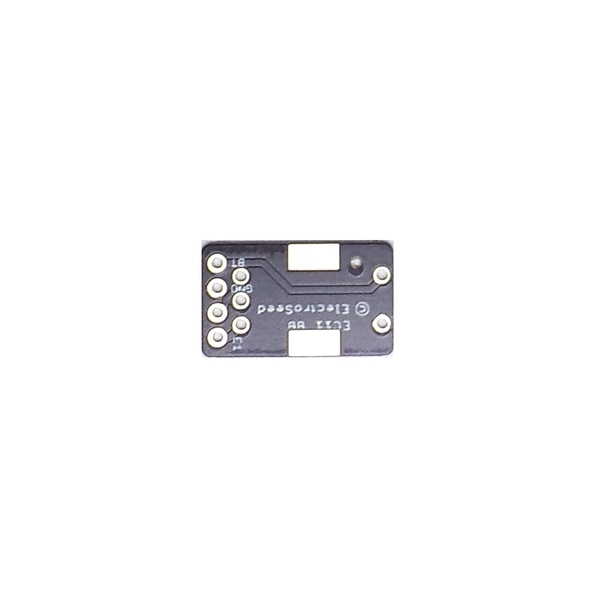

Bottom view:
