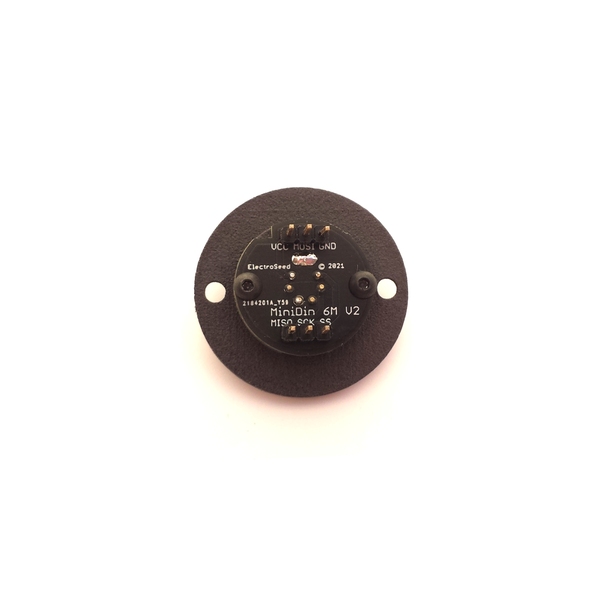

Mini-din plate for QR (Male Part)
Mini-din plate for QR (Male Part) - Image 2

Mini-din plate for QR (Male Part)

Quick realeases offer a 2-pin connector that can be used to pass a power supply. In order to be able to exchange SPI signals between the base and the steering wheel, we have designed new central plates based on 6-pin mini-din connectors.

Thanks to this system, you will be able to have a real quick-release system for Thrustmaster bases and original or custom wheels.


This piece is the female part, to be used on the female part of the quick release.


Wiring of the connector for USB:

Vcc and Mosi : 5v / Red

Gnd  : Gnd / Black



Miso : D+ / White

Sck : Gnd / Black

SS    : D- / Vert

6,00 € excl.โ€ฏVAT
(7,20 € incl.โ€ฏVAT)

Quick realeases offer a 2-pin connector that can be used to pass a power supply. In order to be able to exchange SPI signals between the base and the steering wheel, we have designed new central plates based on 6-pin mini-din connectors.

Thanks to this system, you will be able to have a real quick-release system for Thrustmaster bases and original or custom wheels.


This piece is the female part, to be used on the female part of the quick release.


Wiring of the connector for USB:

Vcc and Mosi : 5v / Red

Gnd  : Gnd / Black



Miso : D+ / White

Sck : Gnd / Black

SS    : D- / Vert

SKU: 401 Category:
