Quick Release
2 pins plate for QR (Female part)
2-pin connector that can be used to pass a power supply, for quick realeases.
This piece is the female part, to be used on the male part of the quick release.
2,00 € excl. VAT
(2,40 € incl. VAT)
2-pin connector that can be used to pass a power supply, for quick realeases.
This piece is the female part, to be used on the male part of the quick release.
Based on 0 reviews
Be the first to review “2 pins plate for QR (Female part)”
Related products
-
Quick Release
Simagic/Moza Compatible Zenky Quick Release
Aluminum Zenky Quick Release, Male + female part, compatible with Simagic/Moza Wheel bases.
Machined with precision, this revolutionary QR is compact, lightweight, and extremely reliable. Unlocking is done simply by pulling the ring that surrounds the QR.
This QR can be mounted directly with standard wheels (70mm inter-axis distance).
3 connection options are proposed :
– The default 2-pin connector allows you to transmit power coming from a Thrustmaster, Fanatec or other Wheel bases.
– A spring loaded connector allows to get the power from Simagic or Moza Racing Wheel bases.
– A min-din 6 pins allows you to transmit power and data coming from a Thrustmaster Wheel base.
Dimensions:
Height: 62 mm
Outside Diameter: 88 mm
Hub and Flywheel bolt centers: 6×70 mm and 6x74mm
Female part : M5 threaded holes, depth 12 mm
Male part : through-hole, diameter 5.5 mm
SKU: 359 -
Quick Release
Mini-din set for QR
Quick releases offer a 2-pin connector that can be used to pass a power supply. In order to be able to exchange SPI signals between the base and the steering wheel, we have designed new central plates based on 6-pin mini-din connectors.Thanks to this system, you will be able to have a real quick-release system for Thrustmaster bases and original or custom wheels.Wiring of the connector for USB:
Vcc and Mosi : 5v / Red
Gnd : Gnd / Black
Miso : D+ / White
Sck : Gnd / Black
SS : D- / Vert
SKU: 399 -
Quick Release
Charge station

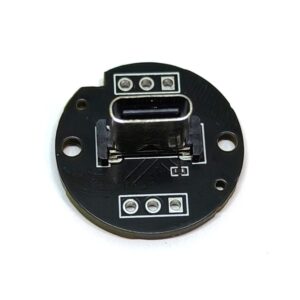

Charge station for the Quick Releases with USB-C connector
2 connexion options are proposed :
– A 2-pin connector allows you to transmit power coming from the USB connector (no data connexion).
– A min-din 6 pins allows you to transmit power and data coming from the USB connector.
Base bolt centers: 6×70 mm
Through-hole, diameter 5 mm
Pinout of the Mini-Din connector:
Vcc : RedGnd : BlackMiso : WhiteSS : GreenSKU: 624
