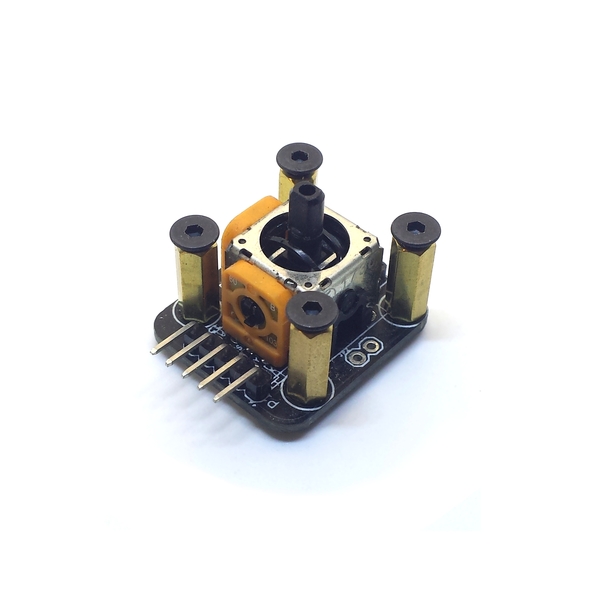

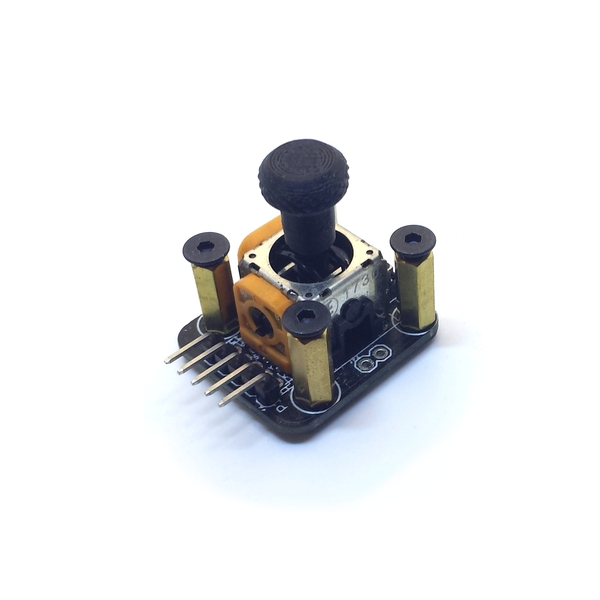

Analog Joystick

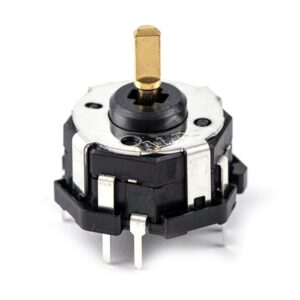

This component combines a digital joystick with 4 directions, a Rotary Encoder with 30 detents / revolution (1 pulse / detent), and a push button.

• Shaft Length: 7 mm
• Shaft Diameter: 2.5 mm
• Bushing Material: Metal
• Panel mount, bushing Thread of spacers : M3 x 4, central hole : 7mm

Unlike competitors products that require 7 inputs, our Joycoder requires only 3 inputs on your board (one analog input for the 4 directions and the button, 2 digital inputs for the encoder). Another advantage is that the button is decoupled from the 4 directions.

Package content :

• Component mounted on its board
• Spacers and screws

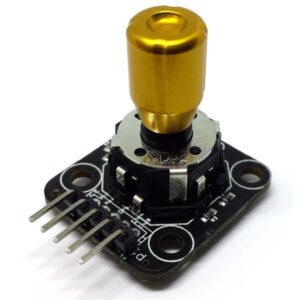

• Knob in resin or aluminium (optional)
