Encoder 12 detents / revolution
142 in stock

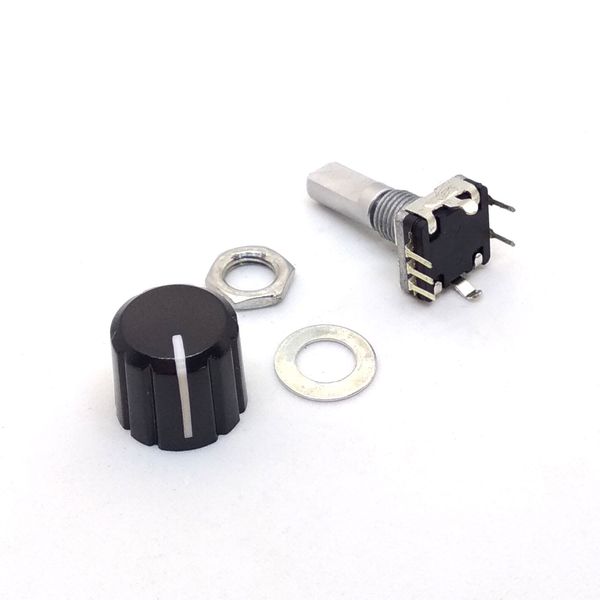

Rotary Encoder 12 detents / revolution, 2 pulses / detent, with push button, mounted on a pcb (option)
- Shaft Diameter: 6 mm
- Bushing Material: Metal
- Panel mount, bushing Thread: M7 x 0.75
- PCB dimensions : 18 x 23.5 mm, h 1mm
- Detent torque : 60 gf.cm (0.8 oz.in)
Link to Data sheet : https://www.electroseed.fr/docs/Bourns_EC11R-777457.pdf
2,40 € incl. VAT (2,00 € excl. VAT)
142 in stock
| Dimensions | 1 × 1 × 1 cm |
|---|
Related products
-
Rotary Encoders
Encoder 16 hard detents / revolution

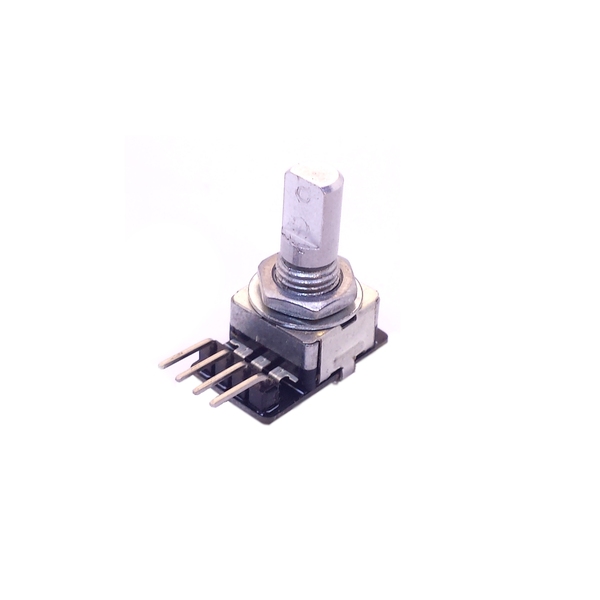

Rotary Encoder 16 detents / revolution, 2 pulses / detent, with push button, mounted on a pcb (option)
- Shaft Diameter: 6 mm
- Bushing Material: Metal
- Panel mount, bushing Thread: M7 x 0.75
- PCB dimensions : 18 x 23.5 mm, h 1mm
- Detent torque : 210 gf.cm (3 oz.in)
Link to Data sheet : https://www.electroseed.fr/docs/Bourns_PEC11H.pdf
SKU: 551 -
Rotary Encoders
CTS Encoder 16 det./rev + Button
Rotary Encoder 16 detents / revolution, 1 pulses / detent, with push button
- Shaft Length: 25.4 mm (1")
- Shaft Diameter: 6.35 mm (0.250")
- Bushing Material: Metal
- Panel mount, hole diameter : 9.5 mm
- bushing Thread: 3/8-32 UNEF-2A
- Detent torque : 120 gf.cm (1.7 oz.in)
Manufacturer : CTS
Reference : 288V232F161B2
Link to Data sheet : https://www.electroseed.fr/docs/CTS288-2255.pdf
SKU: 334 -
Rotary Encoders
CTS Encoder 16 det/rev
Rotary Encoder 16 detents / revolution, 1 pulses / detent
- Shaft Length: 19.05 mm (0.75")
- Bushing Length : 6.35 mm (0.250")
- Shaft Diameter: 6.35 mm (0.250")
- Bushing Material: Metal
- Panel mount, hole diameter : 9.5 mm
- Bushing Thread: 3/8-32 UNEF-2A
- Detent torque : 300 gf.cm (4.1 oz.in)
Manufacturer : CTS
Reference : 288T232R161A2
Link to Data sheet : https://www.electroseed.fr/docs/CTS288-2255.pdf
SKU: 192
