Encoder 20 detents / revolution

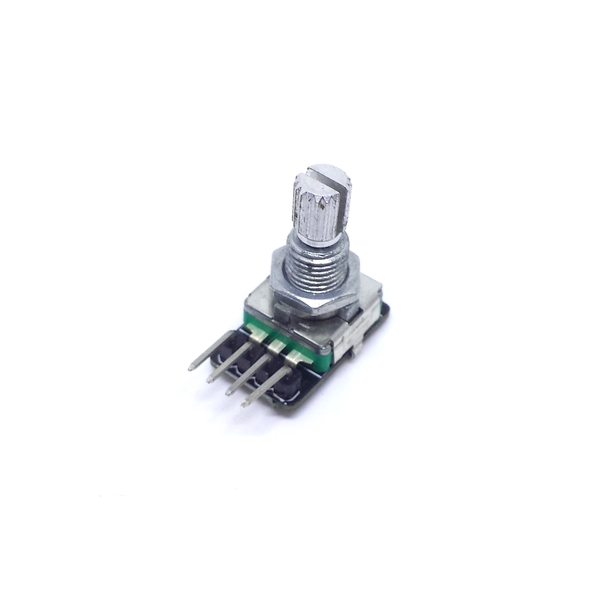

Rotary Encoder 20 detents / revolution, 2 pulses / detent, with push button, mounted on a pcb.
- Shaft Length: 15 mm (including the screw thread)
- Shaft Diameter: 6 mm
- Bushing Material: Metal
- Panel mount, bushing Thread: M7 x 0.75
- Shaft type : crenellated
- Body dimensions (without pins) : 12 x 12 x 6.5 mm
- PCB dimensions : 18 x 23.5 mm, h 1mm
- Detent torque : 60 gf.cm (0.8 oz.in)
1,50 € excl.โฏVAT
(1,80 € incl.โฏVAT)
Rotary Encoder 20 detents / revolution, 2 pulses / detent, with push button, mounted on a pcb.
- Shaft Length: 15 mm (including the screw thread)
- Shaft Diameter: 6 mm
- Bushing Material: Metal
- Panel mount, bushing Thread: M7 x 0.75
- Shaft type : crenellated
- Body dimensions (without pins) : 12 x 12 x 6.5 mm
- PCB dimensions : 18 x 23.5 mm, h 1mm
- Detent torque : 60 gf.cm (0.8 oz.in)
Based on 0 reviews
Be the first to review “Encoder 20 detents / revolution”
Related products
-
Rotary Encoders
CTS Encoder 16 det./rev + Button
Rotary Encoder 16 detents / revolution, 1 pulses / detent, with push button
- Shaft Length: 25.4 mm (1")
- Shaft Diameter: 6.35 mm (0.250")
- Bushing Material: Metal
- Panel mount, hole diameter : 9.5 mm
- bushing Thread: 3/8-32 UNEF-2A
- Detent torque : 120 gf.cm (1.7 oz.in)
Manufacturer : CTS
Reference : 288V232F161B2
Link to Data sheet : https://www.electroseed.fr/docs/CTS288-2255.pdf
SKU: 334 -
Rotary Encoders
Encoder 12 detents / revolution
Rotary Encoder 12 detents / revolution, 2 pulses / detent, with push button, mounted on a pcb.
- Shaft Length: 15 or 20 mm
- Shaft Diameter: 6 mm
- Bushing Material: Metal
- Panel mount, bushing Thread: M7 x 0.75
- PCB dimensions : 18 x 23.5 mm, h 1mm
- Detent torque : 60 gf.cm (0.8 oz.in)
Link to Data sheet : https://www.electroseed.fr/docs/Bourns_EC11R-777457.pdf
SKU: 120 -
Rotary Encoders
Encoder 12 detents/revolution, long axis
Rotary Encoder 12 detents / revolution, 2 pulses / detent, with push button, mounted on a pcb.
- Shaft Length: 20 mm
- Shaft Diameter: 6 mm
- Bushing Material: Metal
- Panel mount, bushing Thread: M7 x 0.75
- PCB dimensions : 18 x 23.5 mm, h 1mm
Link to Data sheet : http://www.electroseed.fr/docs/Bourns_EC11R-777457.pdf
SKU: 643 -
Rotary Encoders
Encoder 12 detents/revolution, shortaxis
Rotary Encoder 12 detents / revolution, 2 pulses / detent, with push button, mounted on a pcb.
- Shaft Length: 15 mm
- Shaft Diameter: 6 mm
- Bushing Material: Metal
- Panel mount, bushing Thread: M7 x 0.75
- PCB dimensions : 18 x 23.5 mm, h 1mm
Link to Data sheet : http://www.electroseed.fr/docs/Bourns_EC11R-777457.pdf
SKU: 686
