Joycoder

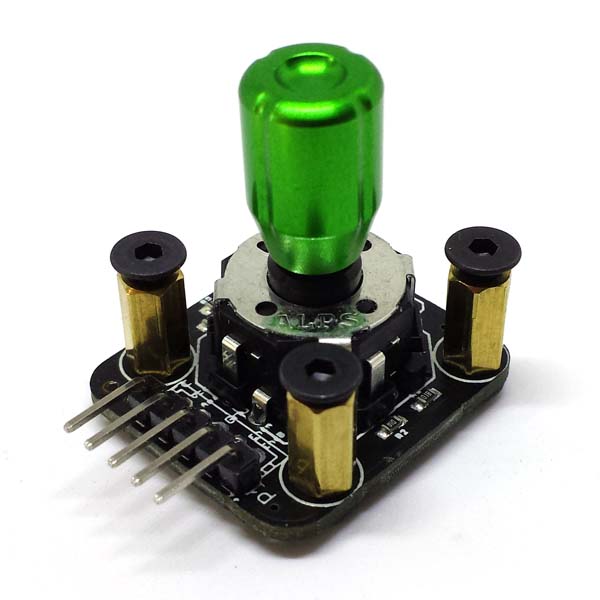

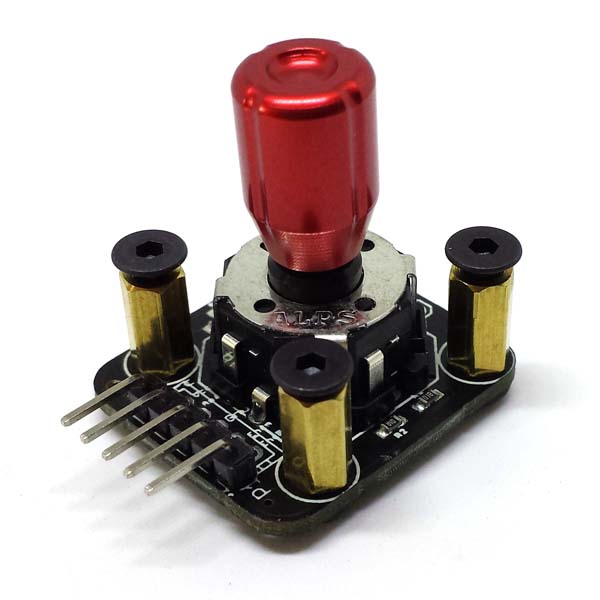

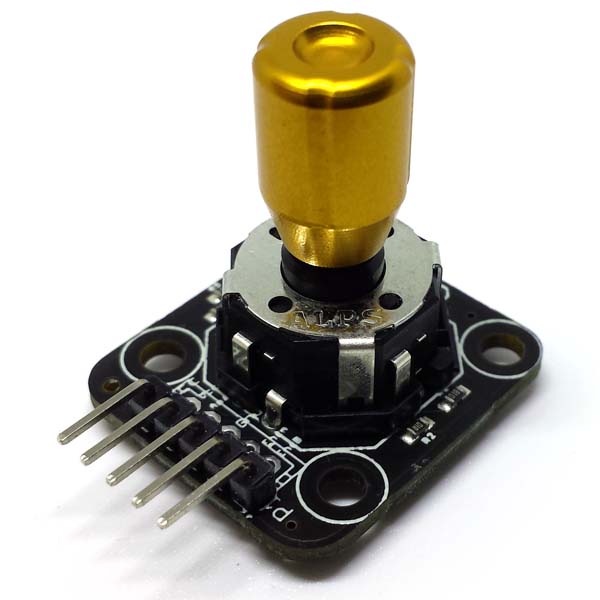

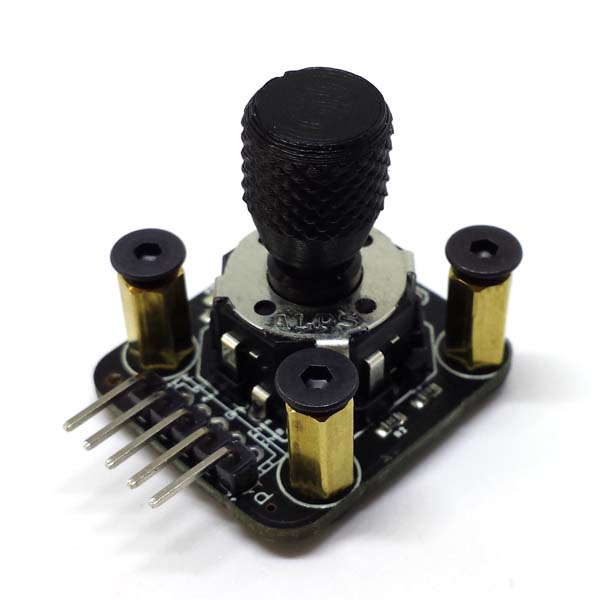

This component combines a digital joystick with 4 directions, a Rotary Encoder with 30 detents / revolution (1 pulse / detent), and a push button.
- Shaft Length: 7 mm
- Shaft Diameter: 2.5 mm
- Bushing Material: Metal
- Panel mount, bushing Thread of spacers : M3 x 4, central hole : 7mm
Unlike competitors products that require 7 inputs, our Joycoder requires only 3 inputs on your board (one analog input for the 4 directions and the button, 2 digital inputs for the encoder). Another advantage is that the button is decoupled from the 4 directions.
Pack content :
– Component mounted on its board
– Spacers and screws
– Knob printed in PLA (optional)
From 10,00 €
This component combines a digital joystick with 4 directions, a Rotary Encoder with 30 detents / revolution (1 pulse / detent), and a push button.
- Shaft Length: 7 mm
- Shaft Diameter: 2.5 mm
- Bushing Material: Metal
- Panel mount, bushing Thread of spacers : M3 x 4, central hole : 7mm
Unlike competitors products that require 7 inputs, our Joycoder requires only 3 inputs on your board (one analog input for the 4 directions and the button, 2 digital inputs for the encoder). Another advantage is that the button is decoupled from the 4 directions.
Pack content :
– Component mounted on its board
– Spacers and screws
– Knob printed in PLA (optional)
Pinout
Tutorials
The "Ana" output must be connected to an analog input.
The "EncA" and "EncB" outputs must be connected to digital inputs (on most boards, analog inputs can also be used as digital inputs)
Here is a Node Blue example to use the Joycoder into a gaming device:https://www.electroseed.fr/shop/gui/index.php?file=examples/02-Digital/Joycoder.txt
In this example, you must connect the "Ana" output to analog input A1 and the 2 "EncA" and "EncB" outputs to inputs A2 and A3 of a Node Blue compatible board (or an expansion board for Teensy) associated with a standard package + "Game device" option.
Dimensions
Drilling Template :
Based on 0 reviews
Be the first to review “Joycoder”
