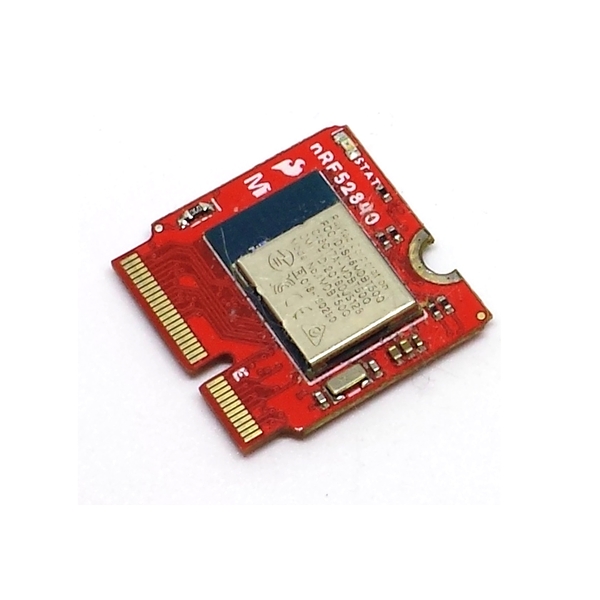

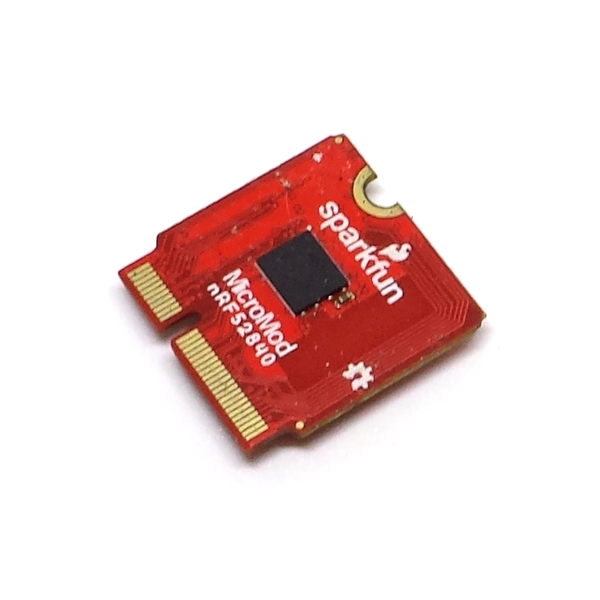

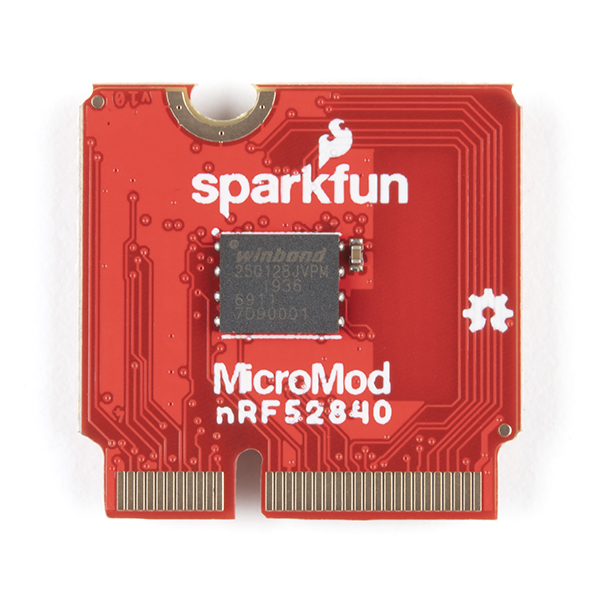

MicroMod NRF52840
29 in stock
Featuring the nRF52840 SoC from Nordic Semiconductor, the SparkFun MicroMod nRF52840 Processor offers a powerful combination of ARM Cortex-M4 CPU and 2.4 GHz Bluetooth transceiver in the MicroMod form-factor with the M.2 MicroMod connector to allow you to plug in a compatible MicroMod Carrier Board with any number of peripherals.

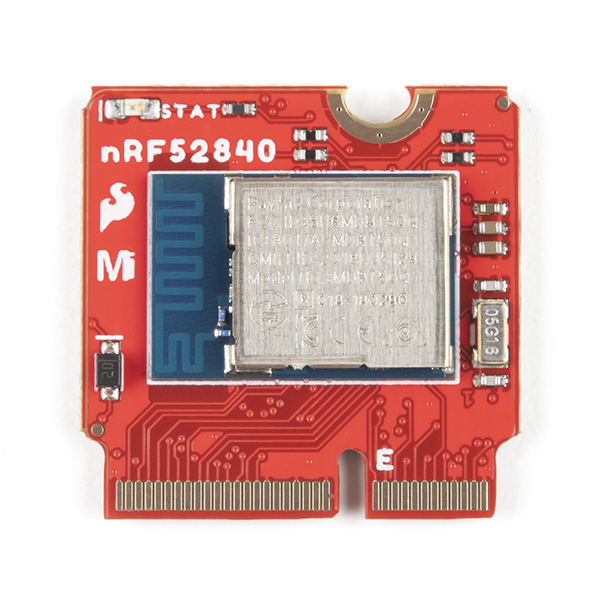

The MicroMod nRF52840 Processor features the Raytac MDBT50Q-P1. This module includes an integrated trace antenna, fits the IC to an FCC and CE approved footprint along with including decoupling and timing mechanisms that would need to be designed into a circuit using the bare nRF52840 IC. The Bluetooth transceiver included on the nRF52840 boasts a BT 5.1 stack and supports Bluetooth 5, Bluetooth mesh, IEEE 802.15.4 (Zigbee & Thread) and 2.4Ghz RF wireless protocols (including Nordic's proprietary RF protocol) allowing you to pick which option works best for your application.
There's also two I2C buses, 2 SPI buses, eleven GPIO, dedicated digital, analog, PWM & PDM pins along with multiple serial UARTS to cover nearly all of your peripheral needs.
We have fixed a hardware bug on this board in order to be able to use the ADC for radiometric measures (potentiometers, etc.).
26,34 € incl. VAT (21,95 € excl. VAT)
En choisissant un package NodeBlue, vous bénéficiez de la configuration de votre choix. Un formulaire de configuration vous sera envoyé après votre commande afin de préciser la programmation souhaitée. Ce formulaire est similaire à cette page, qui permet de tester si la configuration est possible. La carte sera programmée et testée en conséquence, et les schémas de câblage vous seront fournis. Si vous ne prenez pas de package, vous devrez programmer la carte vous même avec l'IDE Arduino. Plus d'information sur les différences entre le package standard et le package pro sont disponibles sur cette page.
29 in stock
Pinout
