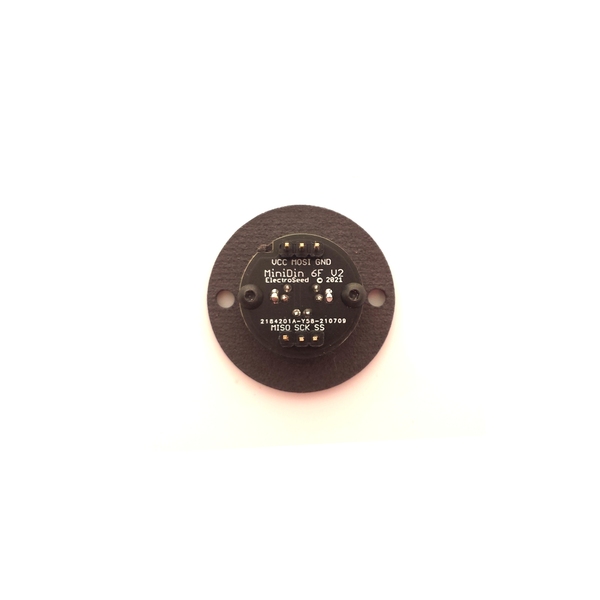

Wiring of the connector for USB:
Vcc and Mosi : 5v / Red
Gnd : Gnd / Black
Miso : D+ / White
Sck : Gnd / Black
SS : D- / Vert
6,00 € excl.โฏVAT
(7,20 € incl.โฏVAT)
Wiring of the connector for USB:
Vcc and Mosi : 5v / Red
Gnd : Gnd / Black
Miso : D+ / White
Sck : Gnd / Black
SS : D- / Vert
Charge station for the Quick Releases with USB-C connector
2 connexion options are proposed :
– A 2-pin connector allows you to transmit power coming from the USB connector (no data connexion).
– A min-din 6 pins allows you to transmit power and data coming from the USB connector.
Base bolt centers: 6×70 mm
Through-hole, diameter 5 mm

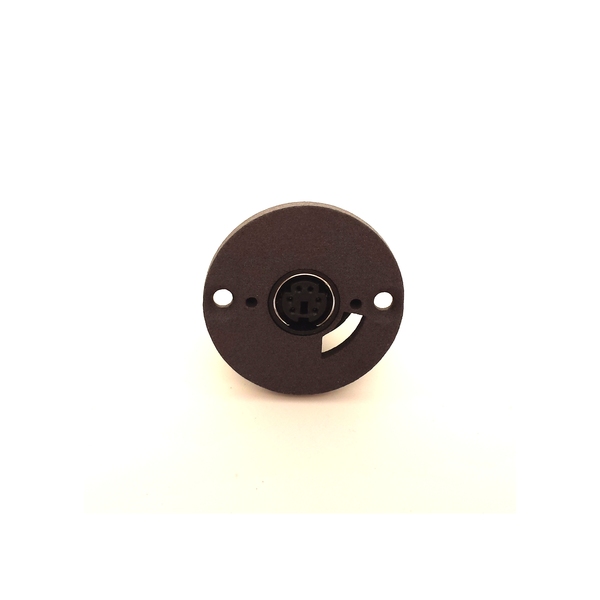

Pinout of the Mini-Din connector:
Male part for the Quick Release, compatible with Simagic/Moza Wheel bases.
2 connection options are proposed :
– A 2-pin connector allows you to transmit power coming from a Thrustmaster, Fanatec or Simagic Wheel base.
– A min-din 6 pins allows you to transmit power and data coming from a Thrustmaster Wheel base.
Hub and Flywheel bolt centers: 6×60 mm
Through-hole, diameter 5.5 mm
OMRON B3F-4055 Button (pack of 20)
FHC M3x12 mm x4
