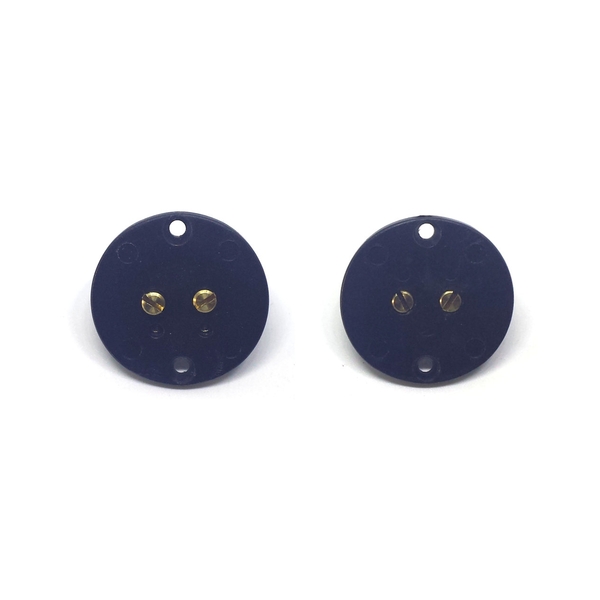

Set of 2 pins plate for QR

Charge station for the Quick Releases with USB-C connector

2 connexion options are proposed :

– A 2-pin connector allows you to transmit power coming from the USB connector (no data connexion).

– A min-din 6 pins allows you to transmit power and data coming from the USB connector.

Base bolt centers: 6×70 mm

Through-hole, diameter 5 mm

Pinout of the Mini-Din connector:
