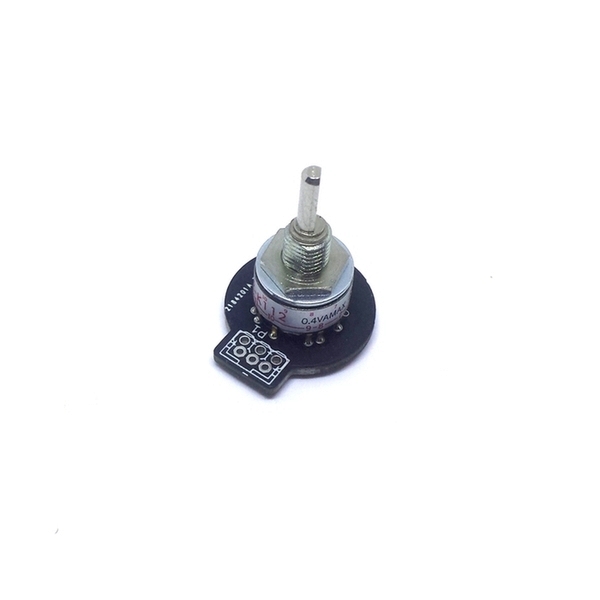

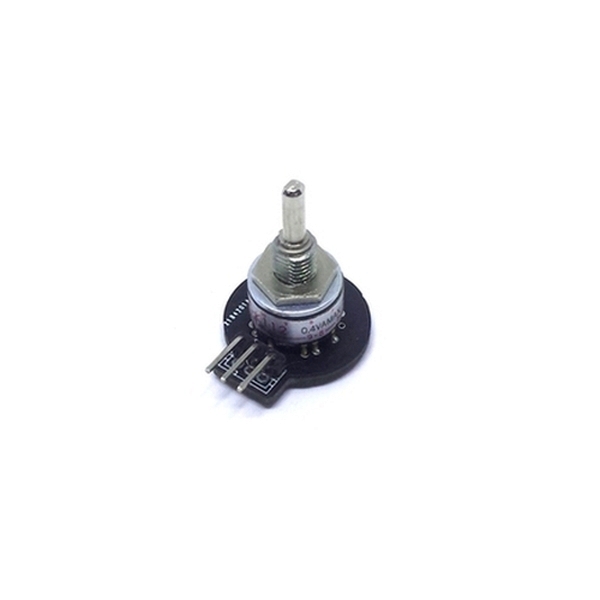

Mini Rotary Switch 12 Positions

Grayhill Rotary Switch 2-12 positions or continuous rotation

Soldered on a circuit board specially developed by us, this rotary switch only uses an analog input and needs only 3 wires: 2 for the power supply wires and on for the analog output.

The 2 stop pins washer that are provided enables to set the number of positions between 2 and 12, or to continuous rotation.

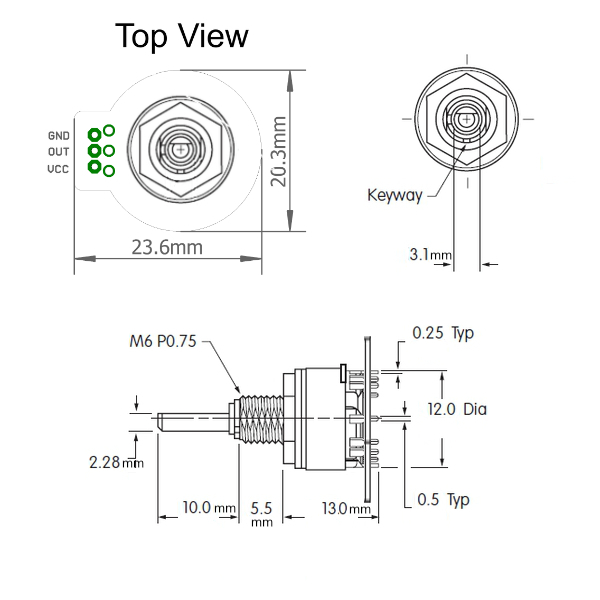

• Drill size : 6.35 mm
• Knob is not provided

Rotary Switch 12 positions (from 2 to 12 position for the blocked version)

Soldered on a circuit board specially developed by us, this rotary switch only uses an analog input and needs only 3 wires: 2 for the power supply and one for the analog output.

The special washer that is provided with the blocked version enables to set the number of positions between 2 and 11 (without the washer you’ll have 12 positions).

Drill size : 9 mm
