Shop
Showing 91–105 of 335 results
-
Fanatec
ElectroSeed MMWB H
The MMWB H board (MicroMod Wheel Board Hub) allows you to connect daughterboards in MicroMod format and offers unique features. Ideal for USB configurations with or without USB screens (like Vocore), it proposes filters and protections on USB input and output lines. To use it with a USB screen, you'll have to associate it with the Samd21J Hub daughter board, that includes a USB HUB.
It can also be used for USB configurations without screens, with a SamD21, SamD21J or SamD51 daughter board.
You'll find below in the description tab a table with the different daughter boards to help you choose the one corresponfing to your needs. All boards can work via USB or native connection with Fanatec or Thrustmaster bases. The management of Nextion screens, RGB LEDs and 7-segment displays is done using the SimHub software and needs a NRF Dongle to work wirelessly.
SKU: 682 -
MicroMod
ElectroSeed MMWB RB
The MMWB RB (MicroMod Wheel Board Radio Boost) allows you to connect daughterboards in MicroMod format and offers unique features. Ideal for wireless, battery powered configurations, it proposes a Lithium-Ion charging circuit (3A Max), as well as a Boost circuit to deliver 5v to Nextion screens or lots of RGB leds.
You'll find below in the description tab a table with the different daughter boards to help you choose the one corresponfing to your needs. All boards can work via USB or native connection with Fanatec or Thrustmaster bases. The management of Nextion screens, RGB LEDs and 7-segment displays is done using the SimHub software and needs a NRF Dongle to work wirelessly.
SKU: 542 -
Fanatec
ElectroSeed MMWB RQR
The MMWB RQR board (MicroMod Wheel Board Radio QR) allows you to connect radio daughterboards in MicroMod format and offers unique features. It's ideal for wireless QR powered configurations (Bases Moza, Simagic ou Fanatec).
You'll find below in the description tab a table with the different daughter boards to help you choose the one corresponfing to your needs. Only the SamD21J NRF daughter board can work at the same wirelessly and natively with a Fanatec or Thrustmaster bases. The management of Nextion screens, RGB LEDs and 7-segment displays is done using the SimHub software and will need a NRF Dongle to work wirelessly.
SKU: 681 -
Radio
ElectroSeed SamD21 WB Radio
The ElectroSeed SamD21 WB Radio board offers 31 inputs/outputs, including 14 analog inputs. 4 analog inputs have pull-up resistors, which allows direct connection of bodacs, thus adding the possibility of connecting 20 additional buttons.
5v power is available (if powered from a Moza or Simagic or other QR providing 5v) around the serial port to connect a Nextion screen or a 7-segment display. The 5v is also exposed to connect RGB leds. Screen and leds are managed with SimHub software, and requires an NRF Dongle to communicate with the PC.
Attention : this card is intended for use with a Moza, Simagic base or other system with induction power supply providing 5V. For use with battery, you will need to go to another card managing battery charging (Feather or XIAO Ble), or a card equipped with a 5V booster to power a screen or many LEDs (MMWB)
The following connectors are also proposed :
- A 5v power connector to connect to the Simagic or Moza bases (thanks to our Simagic and Moza Quick Releases), the radio version allowing native radio communication with Simagic bases (inputs only, 32 functions) or with Moza bases (inputs only, 64 functions)
- A 4-pin JST 2.0 connector to easily connect an aviation connector or a panel mount USB connector for firmware updates.
- A USB-C connector to program the board or connect a USB extension.
If you choose a customized firmware option, a NodeBlue package will be included with the board, so you can have any configuration you need. A configuration form will be sent after your order, so you can specify the desired programming. The board will be programmed accordingly and the wiring schematics will be provided. You can check here if your configuration is possible.
SKU: 661 -
USB
ElectroSeed SamD21 WB USB
The ElectroSeed SamD21 WB USB board offers 36 USB inputs/outputs, including 14 analog inputs. 4 analog inputs have pull-up resistors, which allows direct connection of bodacs, thus adding the possibility of connecting 20 additional buttons.
The 5v is available around the serial port to connect a Nextion screen or a 7-segment display. The 5v is also exposed to connect RGB leds. Screen and leds are managed with SimHub software.
The following connectors are also proposed :
- A 4-pin JST 2.0 connector to easily connect an aviation connector.
- A USB-C connector to program the board or connect a USB extension.
- A 2-pin JST 2.0 connector with 5v to power permanently button leds for example.
If you choose a customized firmware option, NodeBlue package is included with the board, so you can have any configuration you need. A configuration form will be sent after your order, so you can specify the desired programming. The board will be programmed accordingly and the wiring schematics will be provided. You can check here if your configuration is possible.
SKU: 648 -
ElectroSeed SamD21 WB USB HH
The ElectroSeed SamD21 WB USB board offers 36 USB inputs/outputs, including 14 analog inputs. 4 analog inputs have pull-up resistors, which allows direct connection of bodacs, thus adding the possibility of connecting 20 additional buttons.
The 5v is available around the serial port to connect a Nextion screen or a 7-segment display. The 5v is also exposed to connect RGB leds. Screen and leds are managed with SimHub software.
The following connectors are also proposed :
- A 4-pin JST 2.0 connector to easily connect an aviation connector.
- A USB-C connector to program the board or connect a USB extension.
- A 2-pin JST 2.0 connector with 5v to power permanently button leds for example.
If you choose a customized firmware option, NodeBlue package is included with the board, so you can have any configuration you need. A configuration form will be sent after your order, so you can specify the desired programming. The board will be programmed accordingly and the wiring schematics will be provided. You can check here if your configuration is possible.
SKU: 670 -

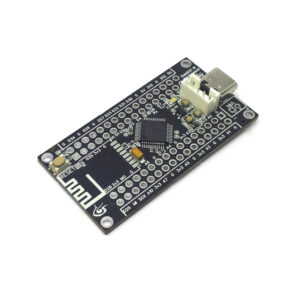

ElectroSeed SamD21 WB USB NH
The ElectroSeed SamD21 WB USB board offers 36 USB inputs/outputs, including 14 analog inputs. 4 analog inputs have pull-up resistors, which allows direct connection of bodacs, thus adding the possibility of connecting 20 additional buttons.
The 5v is available around the serial port to connect a Nextion screen or a 7-segment display. The 5v is also exposed to connect RGB leds. Screen and leds are managed with SimHub software.
The following connectors are also proposed :
- A 4-pin JST 2.0 connector to easily connect an aviation connector.
- A USB-C connector to program the board or connect a USB extension.
- A 2-pin JST 2.0 connector with 5v to power permanently button leds for example.
If you choose a customized firmware option, NodeBlue package is included with the board, so you can have any configuration you need. A configuration form will be sent after your order, so you can specify the desired programming. The board will be programmed accordingly and the wiring schematics will be provided. You can check here if your configuration is possible.
SKU: 669 -
ElectroSeed SamD21 WB USB Pack of 10
The ElectroSeed SamD21 WB board offers 36 USB inputs/outputs (31 with radio module), including 14 analog inputs. 4 analog inputs have pull-up resistors, which allows direct connection of bodacs, thus adding the possibility of connecting 20 additional buttons.
5v power is available around the serial port to connect a Nextion screen or a 7-segment display. The 5v is also exposed to connect RGB leds. Screen and leds are done with SimHub software.
The following connectors are also proposed :
- A 4-pin JST 2.0 connector to easily connect an panel mount aviation connector.
- A USB-C connector to program the board or connect a USB extension.
- A 2-pin JST 2.0 connector with 5v to power permanently button leds for example.
If you choose a customized firmware option, NodeBlue package is included with the board, so you can have any configuration you need. A configuration form will be sent after your order, so you can specify the desired programming. The board will be programmed accordingly and the wiring schematics will be provided. You can check here if your configuration is possible.
SKU: 652 -
ElectroSeed SamD21 WB USB Pack of 10 HH
The ElectroSeed SamD21 WB board offers 36 USB inputs/outputs (31 with radio module), including 14 analog inputs. 4 analog inputs have pull-up resistors, which allows direct connection of bodacs, thus adding the possibility of connecting 20 additional buttons.
5v power is available around the serial port to connect a Nextion screen or a 7-segment display. The 5v is also exposed to connect RGB leds. Screen and leds are done with SimHub software.
The following connectors are also proposed :
- A 4-pin JST 2.0 connector to easily connect an panel mount aviation connector.
- A USB-C connector to program the board or connect a USB extension.
- A 2-pin JST 2.0 connector with 5v to power permanently button leds for example.
If you choose a customized firmware option, NodeBlue package is included with the board, so you can have any configuration you need. A configuration form will be sent after your order, so you can specify the desired programming. The board will be programmed accordingly and the wiring schematics will be provided. You can check here if your configuration is possible.
SKU: 672 -
ElectroSeed SamD21 WB USB Pack of 10 NH
The ElectroSeed SamD21 WB board offers 36 USB inputs/outputs (31 with radio module), including 14 analog inputs. 4 analog inputs have pull-up resistors, which allows direct connection of bodacs, thus adding the possibility of connecting 20 additional buttons.
5v power is available around the serial port to connect a Nextion screen or a 7-segment display. The 5v is also exposed to connect RGB leds. Screen and leds are done with SimHub software.
The following connectors are also proposed :
- A 4-pin JST 2.0 connector to easily connect an panel mount aviation connector.
- A USB-C connector to program the board or connect a USB extension.
- A 2-pin JST 2.0 connector with 5v to power permanently button leds for example.
If you choose a customized firmware option, NodeBlue package is included with the board, so you can have any configuration you need. A configuration form will be sent after your order, so you can specify the desired programming. The board will be programmed accordingly and the wiring schematics will be provided. You can check here if your configuration is possible.
SKU: 671 -
Pedals
Electroseed Tiny Pedals Board
Pedals board with vibration motor control
This board, based on the SamD21 micro-controller, makes it possible to interface buttons/encoders, various sensors, and a NRF24L01 radio module. Two I2C ports and an SPI port are accessible, for example to connect 2 AS5600 magnetic angle sensors or a contactless magnetic sensorThis board also offers a motor control circuit, allowing the control of up to 2 vibration motors to simulate ABS, TC, etc., if the game sends this information, and by interfacing with SimHub software. The motors can be powered by USB or by a separate power supply (voltage between 4 and 16 V). The maximum current is 500 mA per motor, for a total power of 1 W max. Motor speeds are controlled by high frequency PWM signals, so commutation signals are inaudible.You will have access to 17 I/O including 13 analog inputs (12 bits). The inputs are 3.3 V and are not 5 V tolerant. The SamD21 operates at 48 MHz.A NodeBlue package is included with the board, so you can have any configuration you need. A configuration form will be sent after your order, so you can specify the desired programming. The board will be programmed accordingly and the wiring schematics will be provided.SKU: 628 -
Rotary Encoders
Encoder 12 detents / revolution
Rotary Encoder 12 detents / revolution, 2 pulses / detent, with push button, mounted on a pcb.
- Shaft Length: 15 or 20 mm
- Shaft Diameter: 6 mm
- Bushing Material: Metal
- Panel mount, bushing Thread: M7 x 0.75
- PCB dimensions : 18 x 23.5 mm, h 1mm
- Detent torque : 60 gf.cm (0.8 oz.in)
Link to Data sheet : https://www.electroseed.fr/docs/Bourns_EC11R-777457.pdf
SKU: 120 -
Rotary Encoders
Encoder 12 detents/revolution, long axis
Rotary Encoder 12 detents / revolution, 2 pulses / detent, with push button, mounted on a pcb.
- Shaft Length: 20 mm
- Shaft Diameter: 6 mm
- Bushing Material: Metal
- Panel mount, bushing Thread: M7 x 0.75
- PCB dimensions : 18 x 23.5 mm, h 1mm
Link to Data sheet : http://www.electroseed.fr/docs/Bourns_EC11R-777457.pdf
SKU: 643
