Showing 61–75 of 226 results
-
-
Pedals
Electroseed Tiny Pedals Board
Pedals board with vibration motor control
Based on a SamD21 micro-controller, this board can be connected to potentiometers, various sensors and a NRF24L01 radio module. Two I2C ports and an SPI port are accessible, for example to connect 2 AS5600 magnetic angle sensors.This board also offers a motor control circuit, allowing the control of up to 2 vibration motors to simulate ABS, TC, etc., if the game sends this information, and by interfacing with SimHub software.SKU: 628 -
Rotary Encoders

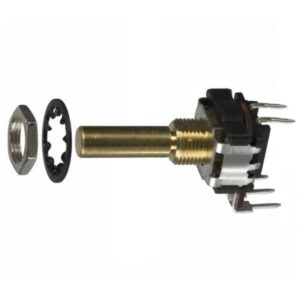

Encoder 12 detents / revolution
Rotary Encoder 12 detents / revolution, 2 pulses / detent, with push button, mounted on a pcb (option)
- Shaft Diameter: 6 mm
- Bushing Material: Metal
- Panel mount, bushing Thread: M7 x 0.75
- PCB dimensions : 18 x 23.5 mm, h 1mm
- Detent torque : 60 gf.cm (0.8 oz.in)
Link to Data sheet : https://www.electroseed.fr/docs/Bourns_EC11R-777457.pdf
SKU: 120 -
Rotary Encoders

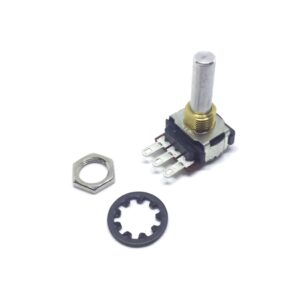

Encoder 16 hard detents / revolution
Rotary Encoder 16 detents / revolution, 2 pulses / detent, with push button, mounted on a pcb (option)
- Shaft Diameter: 6 mm
- Bushing Material: Metal
- Panel mount, bushing Thread: M7 x 0.75
- PCB dimensions : 18 x 23.5 mm, h 1mm
- Detent torque : 210 gf.cm (3 oz.in)
Link to Data sheet : https://www.electroseed.fr/docs/Bourns_PEC11H.pdf
SKU: 551 -
Fanatec, Fanatec
Fanatec LeoXZ Quick Release
LeoXZ Quick Release with connector and 6 x 70mm M5 tapped holes, for Fanatec wheel bases, compatible with all bases :
- Podium DD1 and DD2
- CSL DD
- ClubSport Wheel all versions 1, 2 and 2.5
- CSL Elite Xbox and PS4 versions
- Older CSL
We have modified the output connector to a JST PH 8 pins in order to be able to connect to our MMWB boards.
Combined with a MMWB board, it will allow you to build customised wheels by emulating an official Fanatec wheel (BMW or Formula V2), to activate the FFB and to access to features like real time FFB tweaking, led display, etc…
SKU: 673 -
Fanatec
Fanatec wheel USB Conversion Board
Fanatec wheel USB Conversion Board
USB conversion board for Fanatec wheels.
This board enables converting Fanatec wheels to USB.A dedicated connector enables easy connection with the included JST cable (opening the wheel is needed).
USB cable is not included, but you can use this cable.
Supported wheels :
- Formula V1 Black / Carbon
- BMW GT2 V1
- Formula V2 / 2.5 / 2.5x & F1
- McLaren GT3 V1 & V2
- Podium Button Module Endurance (with APM shifters support) without the need to have a QR Podium Hub
Other wheels are in the process of being converted.
Leds, 7 segment displays, and vibration motors are managed by SilmHub or Fanatec Control Panel software
SKU: 710 -
Fanatec
Fanatec wheel USB Conversion Board pour QR2 – 5S
Fanatec wheel USB Conversion Board
USB conversion board for Fanatec wheels.
This board enables converting Fanatec wheels to USB.Designed to be mounted directly in a QR2, this board is compatible with Dan Suzuki’s system for passing USB through the QR.
A dedicated connector enables easy connection with a cable (opening the wheel is needed). This cable is included in the kit.
Supported wheels :
- Formula V1 Black / Carbon
- BMW GT2 V1
- Formula V2 / 2.5 / 2.5x & F1
- McLaren GT3 V1 & V2
- Podium Button Module Endurance (with APM shifters support) without the need to have a QR Podium HubQRZZN
Other wheels are in the process of being converted
Leds, 7 segment displays, and vibration motors are managed by SilmHub or Fanatec Control Panel software
SKU: 717
