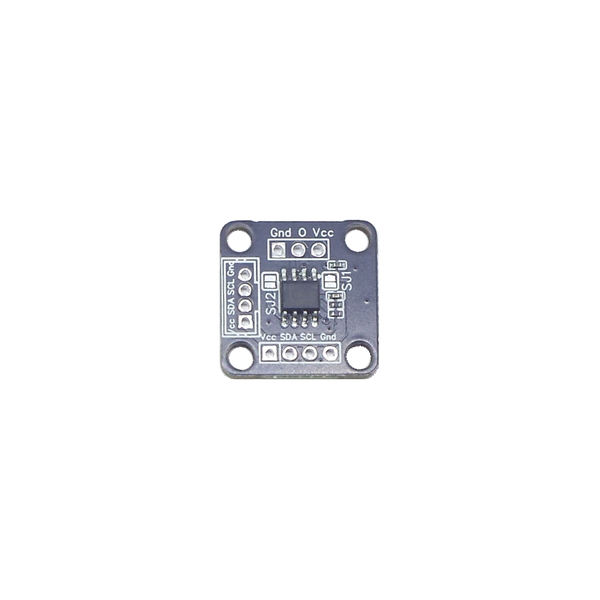

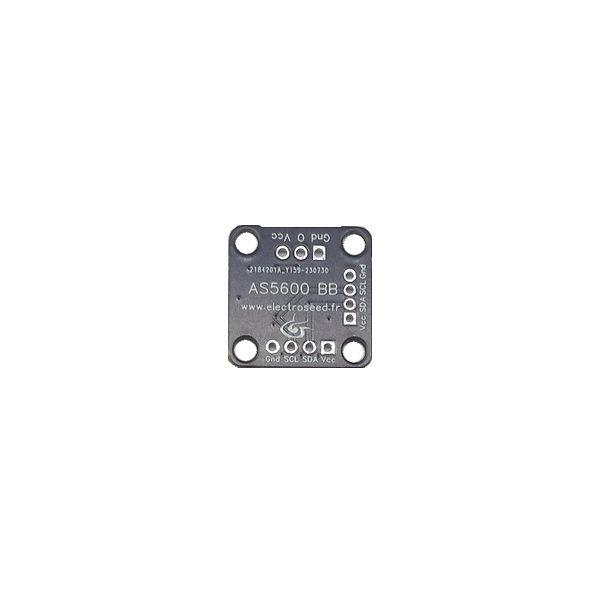

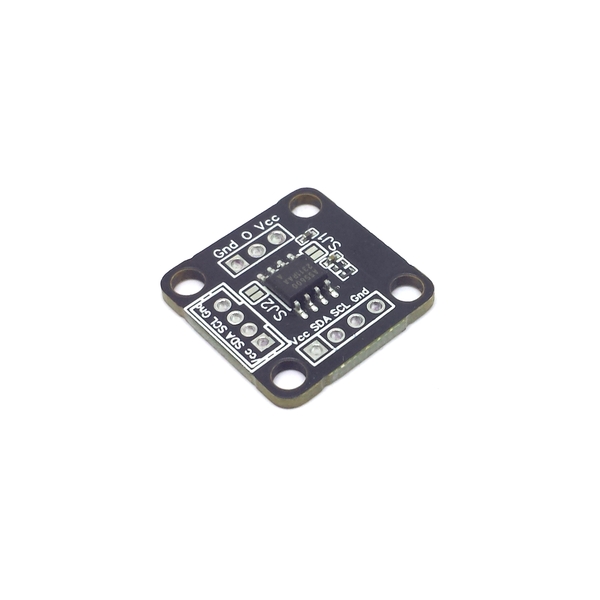

Contactless AS5600 12 bits angle sensor, delivered with a magnet.

Allows you to make pedals or any other element requiring a robust angle sensor.

The angle range can be 360° but can also be reduced down to 18° while keeping the full precision of the sensor.

Available interfaces are analog or I2C.We recommand I2C, since it allows to do the sensor calibration (choice of the angle interval), and also the signal will be more protected against noise.

Power voltage : 3.3V

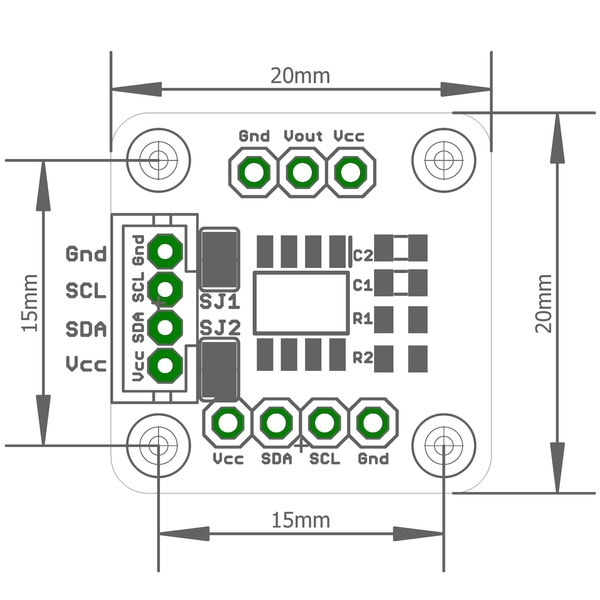

Board dimensions: 20 mm x 17 mm, thickness 4mm

Magnet dimension : Diameter 6mm, height 2.5 mm

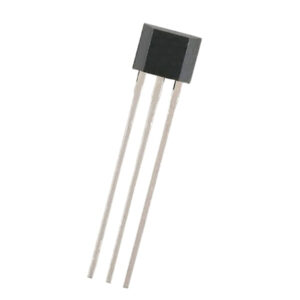

This hall effect linear magnetic sensor senses a magnetic field and produces a voltage proportionnal to the field, centered at 1V. It enables to replace potentiometers for analog commands, avoiding any mechanical wear.

If you have a board that is already programmed for potentiometers, you can replace them with this type of sensor without reprogramming the board (but pay attention to the wiring which is different).

Sensitivity : 47mV/mT / 4.7mV/Gauss

Supply voltage : from 2.7 to 38 Vdc
