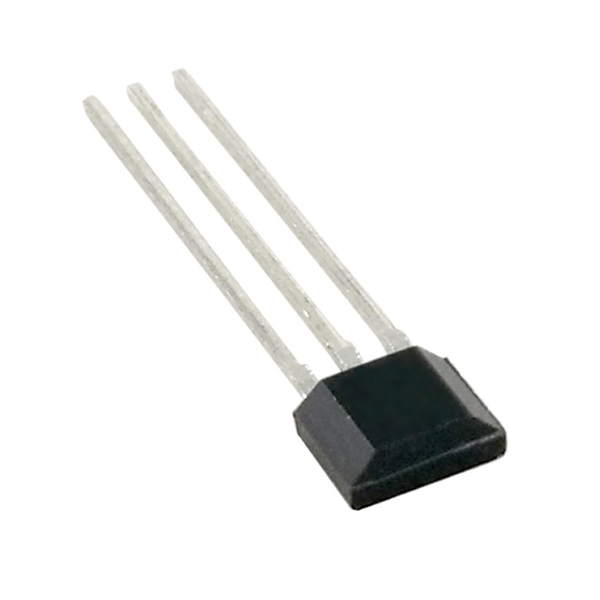

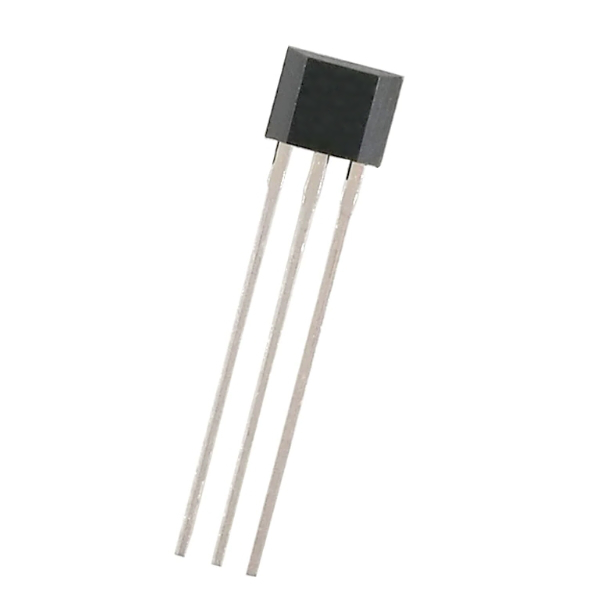

Linear Magnetic Sensor DRV5053RA
5 in stock
This hall effect linear magnetic sensor senses a magnetic field and produces a voltage proportionnal to the field, centered at 1V. It enables to replace potentiometers for analog commands, avoiding any mechanical wear.

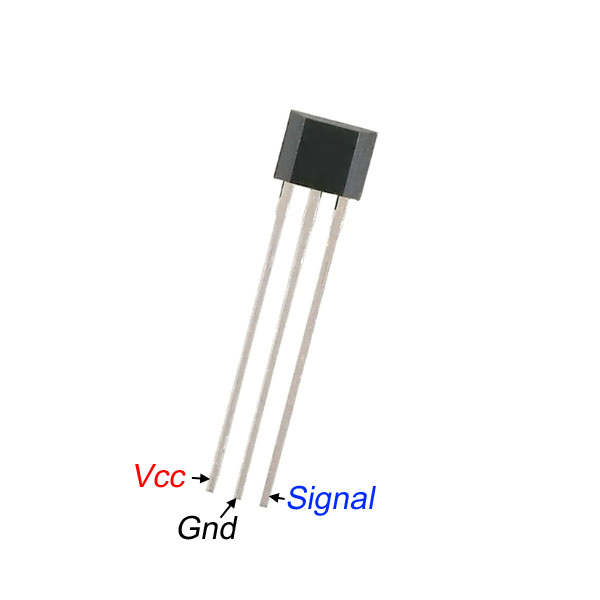

If you have a board that is already programmed for potentiometers, you can replace them with this type of sensor without reprogramming the board (but pay attention to the wiring which is different).
Sensitivity : 47mV/mT / 4.7mV/Gauss
Supply voltage : from 2.7 to 38 Vdc
Data Sheet : https://www.electroseed.fr/docs/DRV5053.pdf
1,50 € incl. VAT (1,25 € excl. VAT)
5 in stock
| Weight | 0,002 kg |
|---|---|
| Dimensions | 1 × 1 × 1 cm |
