Seeed Studio XIAO BLE
1 in stock
The Seeeduino XIAO BLE board brings you the power of a nRF52840 in one of the smallest form factor, and allows to deploy wireless projects at a small cost. It includes a Texas Instrument BQ24101 battery charging circuit, and the battery charge level can be measured.
Thanks to Node Blue, this board enables connecting buttons, switches, encoders, potentiometers, rotary switches, joysticks and various sensors.
Attention, this board uses an USB-C connector.
15,20 € incl. VAT (12,67 € excl. VAT)
1 in stock
The Seeeduino XIAO BLE board brings you the power of a nRF52840 in one of the smallest form factor, and allows to deploy wireless projects at a small cost. It includes a Texas Instrument BQ24101 battery charging circuit, and the battery charge level can be measured.
Thanks to Node Blue, this board enables connecting buttons, switches, encoders, potentiometers, rotary switches, joysticks and various sensors.
Attention, this board uses an USB-C connector.

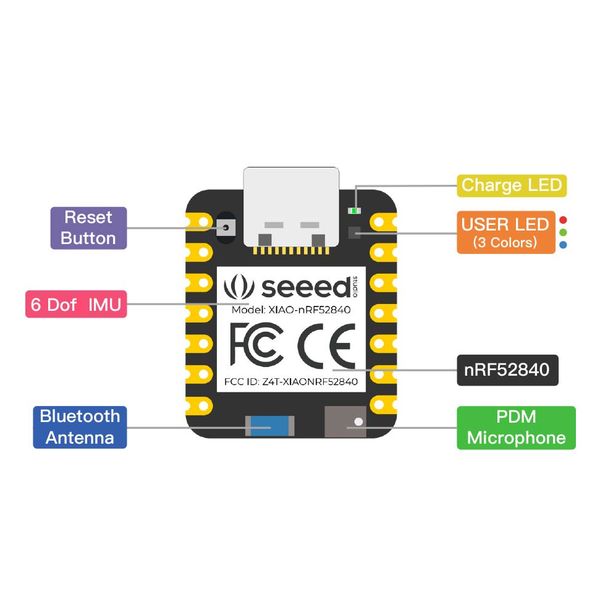

Pinout
