Shop
Showing 16–30 of 226 results
-
USB

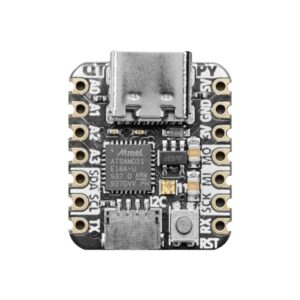

Adafruit QT PY SamD21
The Adafruit QT PY SamD21 board brings you the power of a SamD21 in one of the smallest form factor. Size and pinout is compatible with the Seeeduino XIAO board, but has more features : a reset button, a Neopixel RGB Led, and a STEMMA QT I2C connector.
Thanks to Node Blue, this board enables connecting buttons, switches, encoders, potentiometers, rotary switches, joysticks and various sensors.
By choosing the Bodac option, you’ll be able to connect 5 buttons on only one input.
For example :
- with 2 encoders, 11 buttons instead of 7.
- without encoders, 15 buttons instead of 11.
Drivers Download : Adafruit Drivers
SKU: 511 -
Joysticks

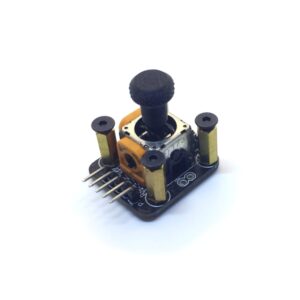

Analog Joystick
This component combines an analog joystick and a push button.
- Shaft Length: 7.7 mm
- Shaft Diameter: 4 mm
- Bushing Material: Metal + plastic
- Panel mount, bushing Thread of spacers : M3 x 4, central hole : 12 mm
Delivered mounted, only 3 inputs will be needed on your board (2 analog inputs for the 2 axis, 1 digital input for the button).
Package content :
- Component mounted on its board
- Spacers and screws
- Knob printed in resin (optional)
SKU: 502 -
Sensors

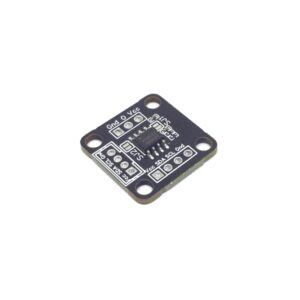

Angle sensor AS5600 ElectroSeed
Contactless AS5600 12 bits angle sensor, delivered with a magnet.
Allows you to make pedals or any other element requiring a robust angle sensor.
The angle range can be 360° but can also be reduced to 18° while keeping the full precision of the sensor.
Available interfaces are analog or I2C.
SKU: 346 -
Kits

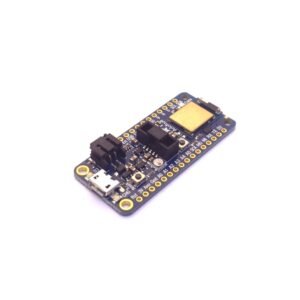

Battery + Radio NRF52840 Kit
This kit allows you to build a radio link for your steering wheel. The embedded board and the dongle are based on the NRF52840 micro-controller.
Kit contents :
- NRF52840 Feather Express board with its printed plate and an external led with connector
- NRF52Dongle (optional)
- µUSB extension , so you’ll be able to recharge the battery or reprogram the NRF52840 board without having to open your wheel.
- 1 power switch to switch the wheel off and save battery life.
- 10 20cm dupont cables and 10 10cm dupont cables so you can connect your buttons, rotary encoders, etc.
SKU: 366 -
Kits
Battery + Radio NRF52840 Kit
This kit allows you to build a radio link for your steering wheel. The embedded board and the dongle are based on the NRF52840 microcontroler.
Kit contents :
– NRF52840 Feather Express board with its printed plate and an external led with connector
– NRF52Dongle (option)
– µUSB extension , so you'll be able to recharge the battery or reprogram the NRF52840 board without having to open your wheel.
– 1 power switch to switch the wheel off and save battery life.
– 10 20cm dupont cables and 10 10cm dupont cables so you can connect your buttons, rotary encoders, etc.
SKU: 366-1 -
Node Blue
BoardServer
BoardServer is the software you need to install in order to use NodeBlue. It will detect boards connected to your PC and upload programs compiled with NodeBlue.
It is also usefull to display the charge level of your steering wheel if you have one using a battery.
Installation instructions : http://www.nodeblue.org/wiki_fr/index.php/Installation
NodeBlue Wiki : www.nodeblue.org/wiki_fr
SKU: 263 -
Resistors
Bodac Pack
The Bodac is a system that allows to implement several buttons on a single analog input, with the possibility to have several buttons pressed at the same time. The “usual” systems (resistors ladders or matrix without diodes), do not allow to press several buttons at a time.
The benefit of the Bodac compared to a button matrix with diodes is a simpler wiring: a resistance between each button pin, and a single wire between each button.
This pack of 1% precision resistors allows to create a Bodac with 5 buttons or less.
NodeBlue example : https://www.electroseed.fr/shop/gui/index.php?file=examples/02-Digital/BodacHID.txt
SKU: 66 -
Quick Release
Charge station
Charge station for the Quick Releases with USB-C connector
2 connexion options are proposed :
– A 2-pin connector allows you to transmit power coming from the USB connector (no data connexion).
– A min-din 6 pins allows you to transmit power and data coming from the USB connector.
Base bolt centers: 6×70 mm
Through-hole, diameter 5 mm
Pinout of the Mini-Din connector:
Vcc : RedGnd : BlackMiso : WhiteSS : GreenSKU: 624
